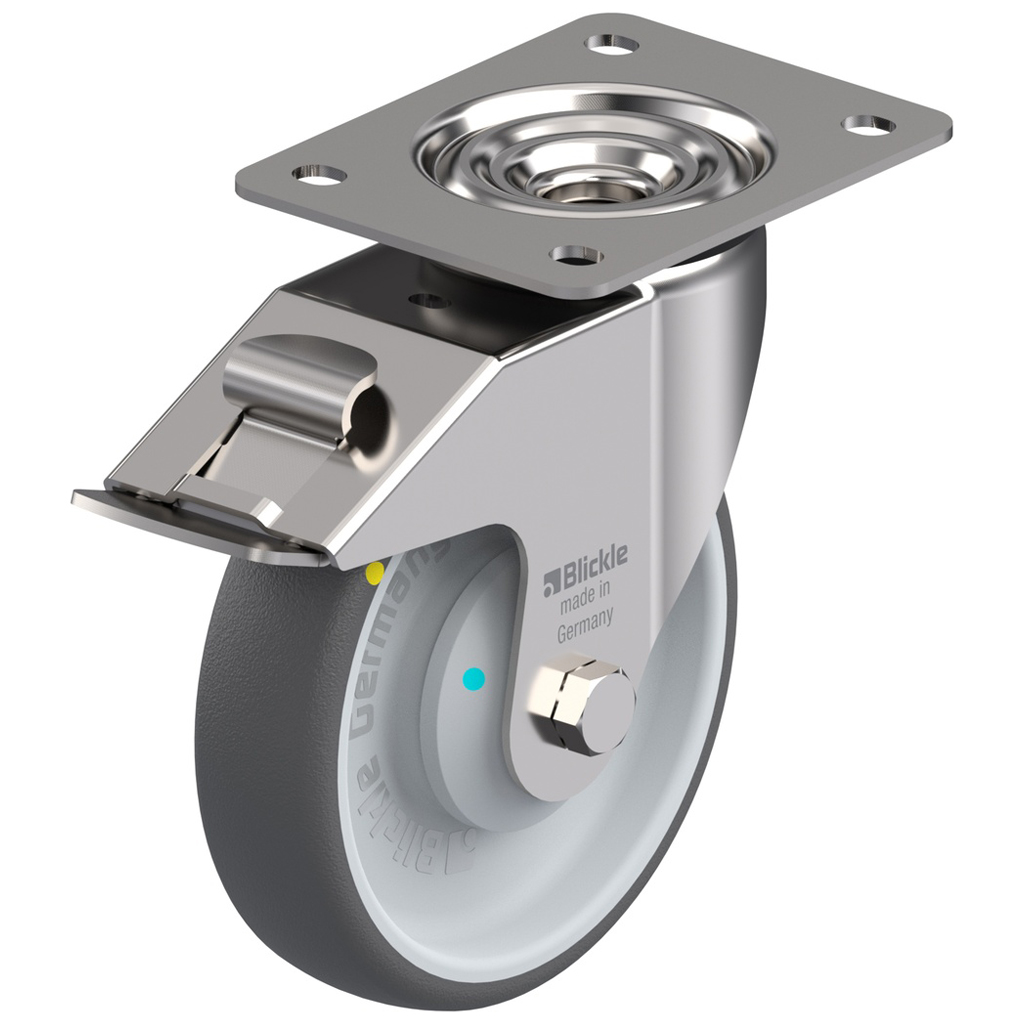

160mm stainless steel swivel/brake castor with grey electrically conductive thermoplastic polyurethane on nylon centre wheel, 260kg
Swivel/brake castor with top plate bracket made of stainless steel with double row ball race in swivel head (material no. 1.4301/AISI 304), with dust protection ring.
Foot operated brake that locks both swivel and wheel simultaneously.
Wheel with electrically conductive thermoplastic polyurethane chemically bonded on nylon centre.
The hardness of the tread is 94° Shore A.
Electrical conductivity ≤10⁴Ω.
Additional sealed single ball bearing.
Bolted wheel axle.
Low rolling resistance and operating noise.
Good floor preservation and non-marking.
Very good chemical resistance to many substances.
Add to cart
Sign in
Pay
Get Delivered
Part Number | 530067 |

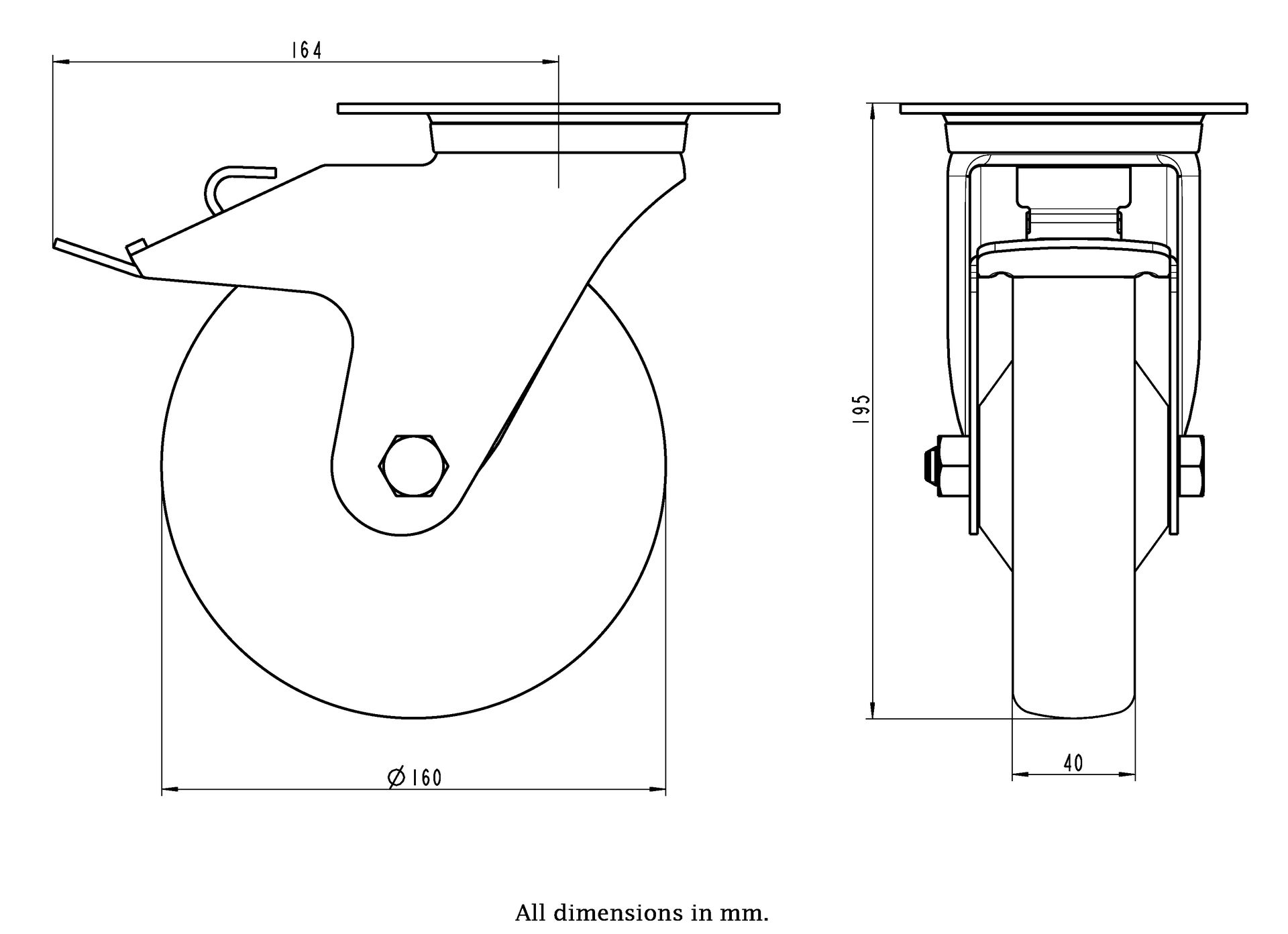

Wheel Diameter (mm) | 160 |
Tread Width (mm) | 40 |
Bearing Type | Additional sealed single ball bearing |

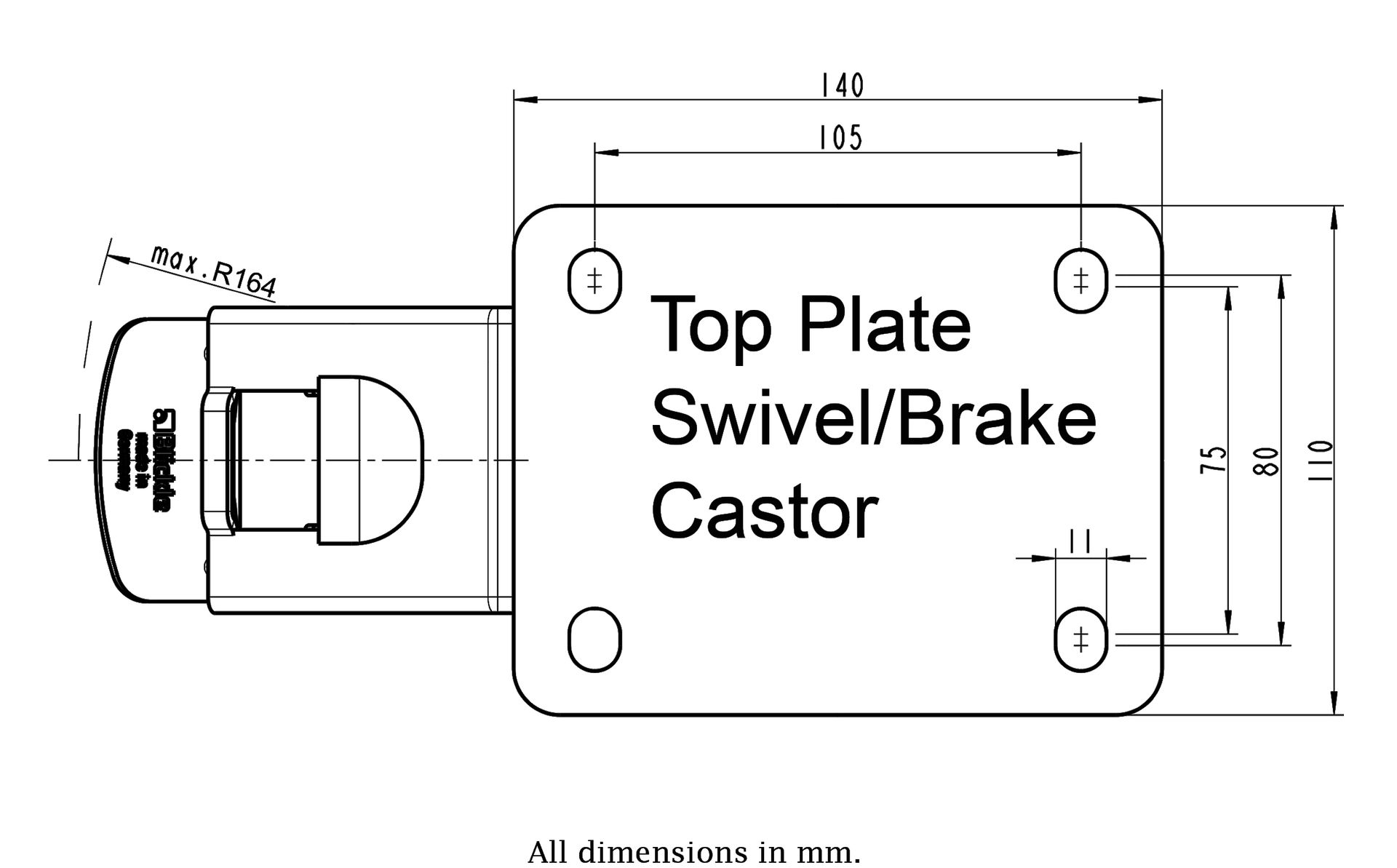

Top Plate Size (mm) | 140x110 |
Fixing Hole Spacing (mm) | 105x75-80 |
Fixing Hole Size (mm) | 11 |
Overall Height (mm) | 195 |
Load Capacity 3km/h (kg) | 260 |
Blickle Reference | LEX-PATH 160KAD-FI-ELS |
