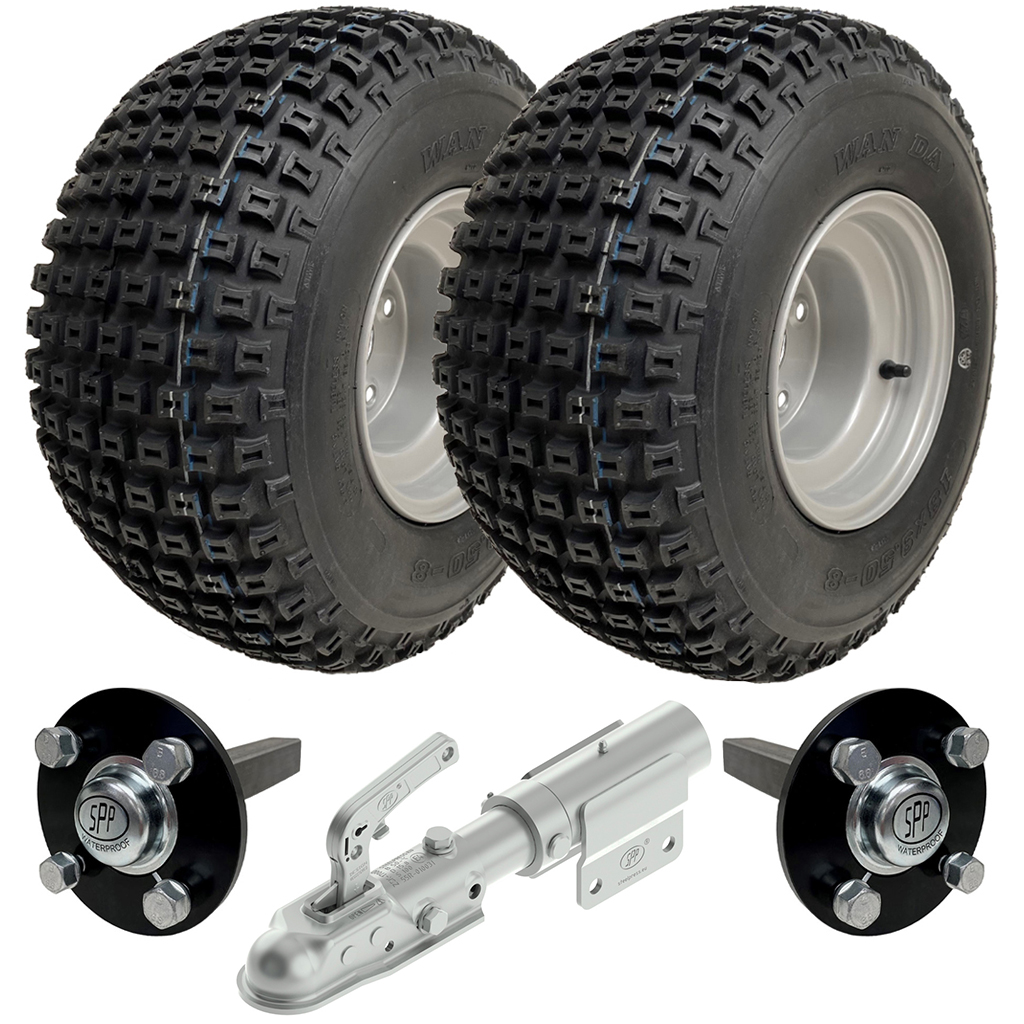

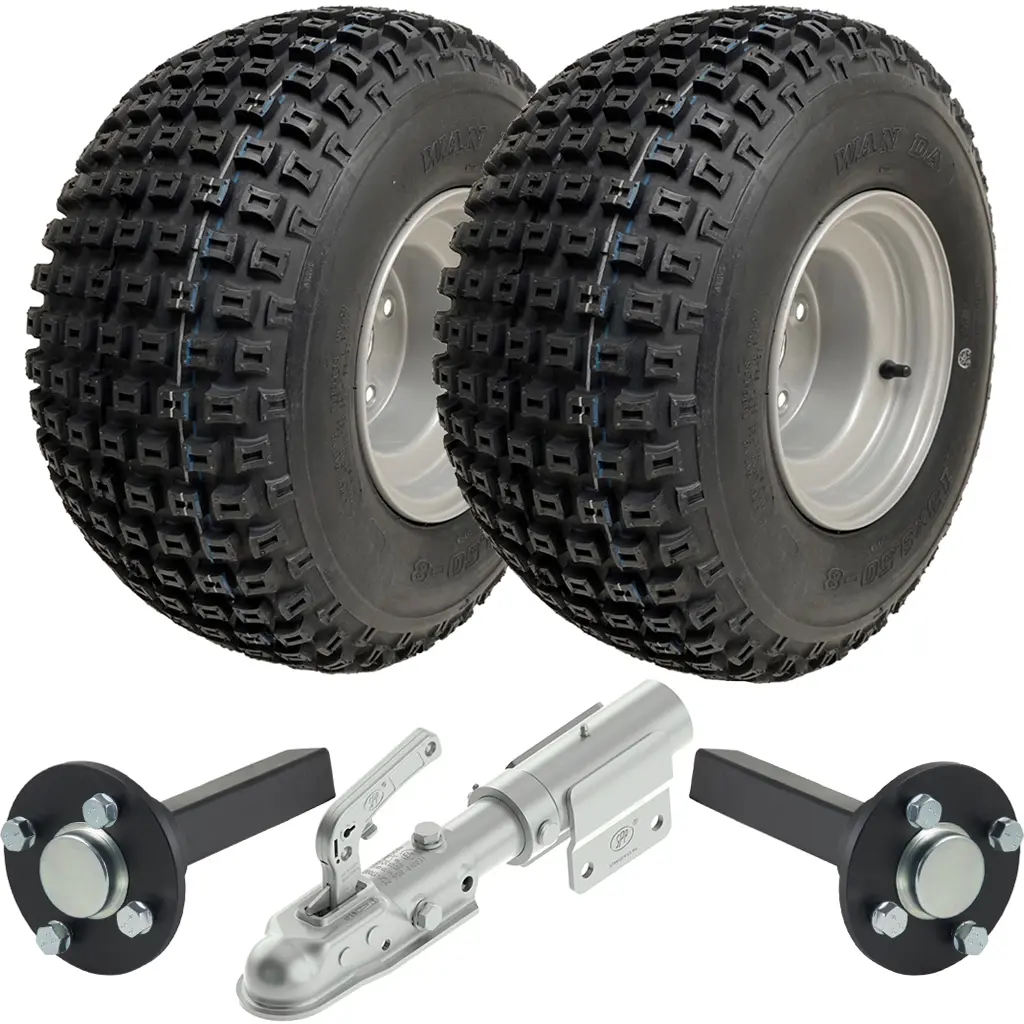

Contents of this kit include:
2 x Wheels,
2 x Hub & Stub axles,
1 x Swivel tow hitch.
Item specifications: Wheels.
• 18x9.50-8 4ply Wanda P322 knobby tyres on steel rim 4x100mm PCD.
• Overall diameter: 460mm,
• Max width of tyre: 212mm,
• Tread depth: 9.5mm,
• Inflation: 5psi,
• Max load per wheel: 102kg (225 lbs),
• Wheel rims are heavy duty welded rims, powder coat paint with
E-coating anti-corrosion treatment for superior finish.
Item specifications: Stub axles.
• Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts.
• PCD is 100mm,
• Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long.
• The hubs are waterproof.
• The shaft is 35x35mm x 200mm long, solid steel.
• Manufactured by SPP (Steelpress, Poland).
Item specifications: Swivel Hitch.
Heavy duty steel towing hitch with 360 Degree rotation.
This hitch sits over a 50X50mm box section fixed in place with 2 mounting holes (75mm apart).
The bolt holes are from an M12 bolt.
Overall length is 440mm.
Max load is 1700kg
This is for use on ATV trailers & equipment Off Road use it is produced in the EU.
Safety feature for off road towing.
If your trailer turns over the swivel hitch rotates and your vehicle towing is not flipped with it.
Maximum Kit load capacity 204kgs for off road use only.
Add to cart
Sign in
Pay
Get Delivered
| Part Number | EC1149 |
| Rim Colour | Silver |
| Tyre Size | 18x9.50-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P322 |
| Tread Depth (mm) | 9.5 |
| SW (mm) | 212 |
| OD (mm) | 460 |
| PSI | 5 |
| Stud / PCD | 4x100 |
| Max Load (Kg) | 204 |
| Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
| Hitch (1pcs) | swivel hitch |
