T-Bush 25x12x02mm
T-Bush 25x12x02mm
2.91 €
2.91 €
Wheel series 100mm black rubber on pressed steel centre 14mm bore hub length 39mm roller bearing 90kg
Wheel series 100mm black rubber on pressed steel centre 14mm bore hub length 39mm roller bearing 90kg
5.98 €
5.98 €

35x35mm Hub & Stub axle 4/4" M10 STUD High speed

https://www.parnells.eu/web/image/product.template/31629/image_1920?unique=332ec6b

60.15 € 60.15 EUR 60.15 €

69.86 €

Login for trade prices

Not Available For Sale


  • Max Load per Hub & Stub (< 25km/h)
  • Max Load per Hub & Stub (25-90km/h)
  • Max Load per Hub & Stub (>90km/h)
  • Dimension 'A' (mm)
  • Dimension 'B' (mm)
  • Dimension 'C' (mm)
  • Hub
  • Max Load (Kg) (< 25km/h)
  • Max Load (Kg) (25-90km/h)
  • Max Load (Kg) (> 90km/h)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

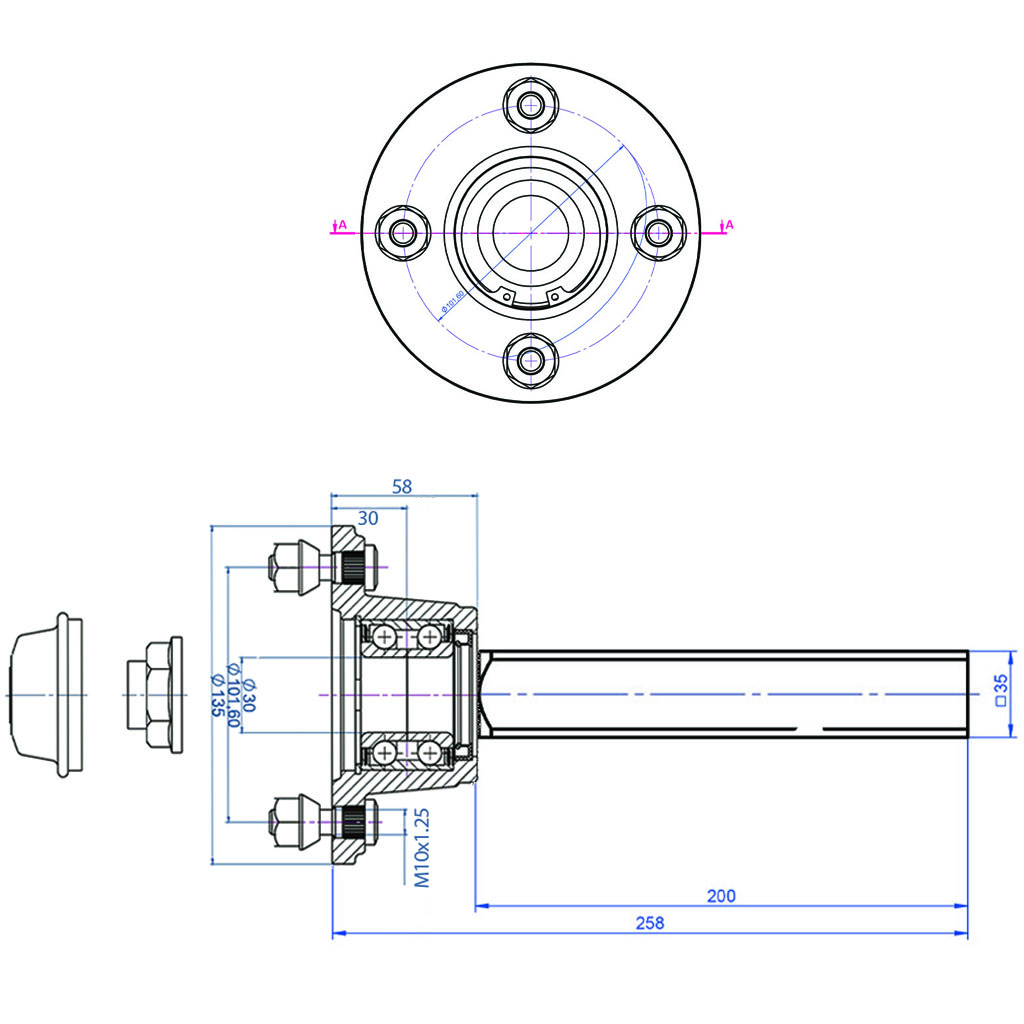

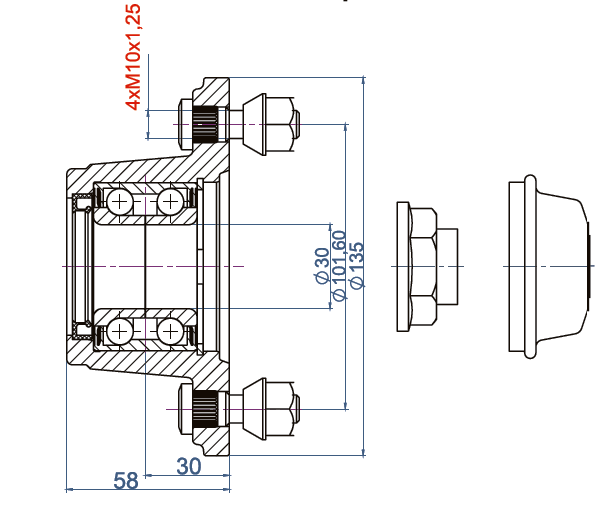

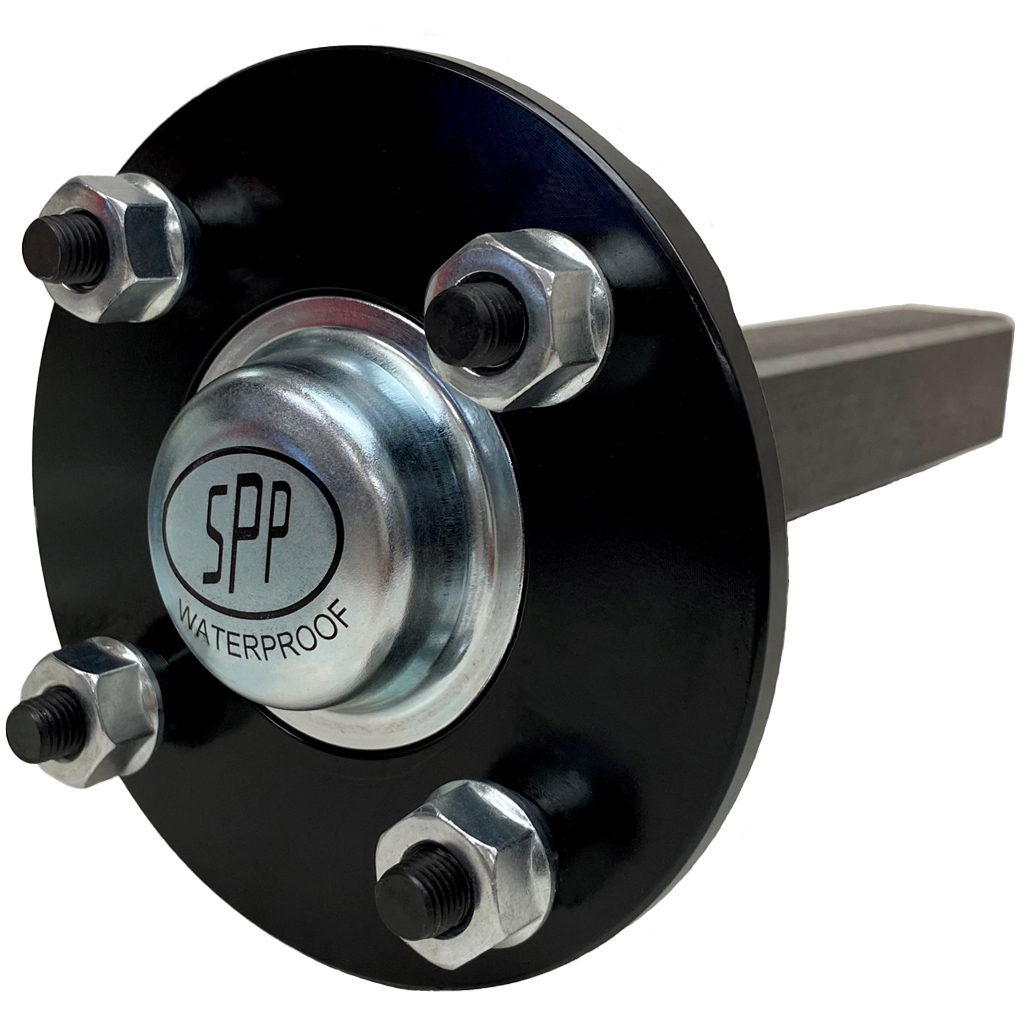

Hub & Stub axle 4/4" M10 STUD  35x35mm High speed

SPP high quality hub & stub axle set.

35x35mm solid square stub axle for welding or drilling and bolting.

High-speed bearing fitted.

4x10mm studs @ 4 inch P.C.D

Max Load per Hub & Stub (< 25km/h) 750.0
Max Load per Hub & Stub (25-90km/h) 500.0
Max Load per Hub & Stub (>90km/h) 375.0
Dimension 'A' (mm) 200
Dimension 'B' (mm) 258.0
Dimension 'C' (mm) 35.0
Hub 4x4"
Max Load (Kg) (< 25km/h) 750.0
Max Load (Kg) (25-90km/h) 500.0
Max Load (Kg) (> 90km/h) 375.0
