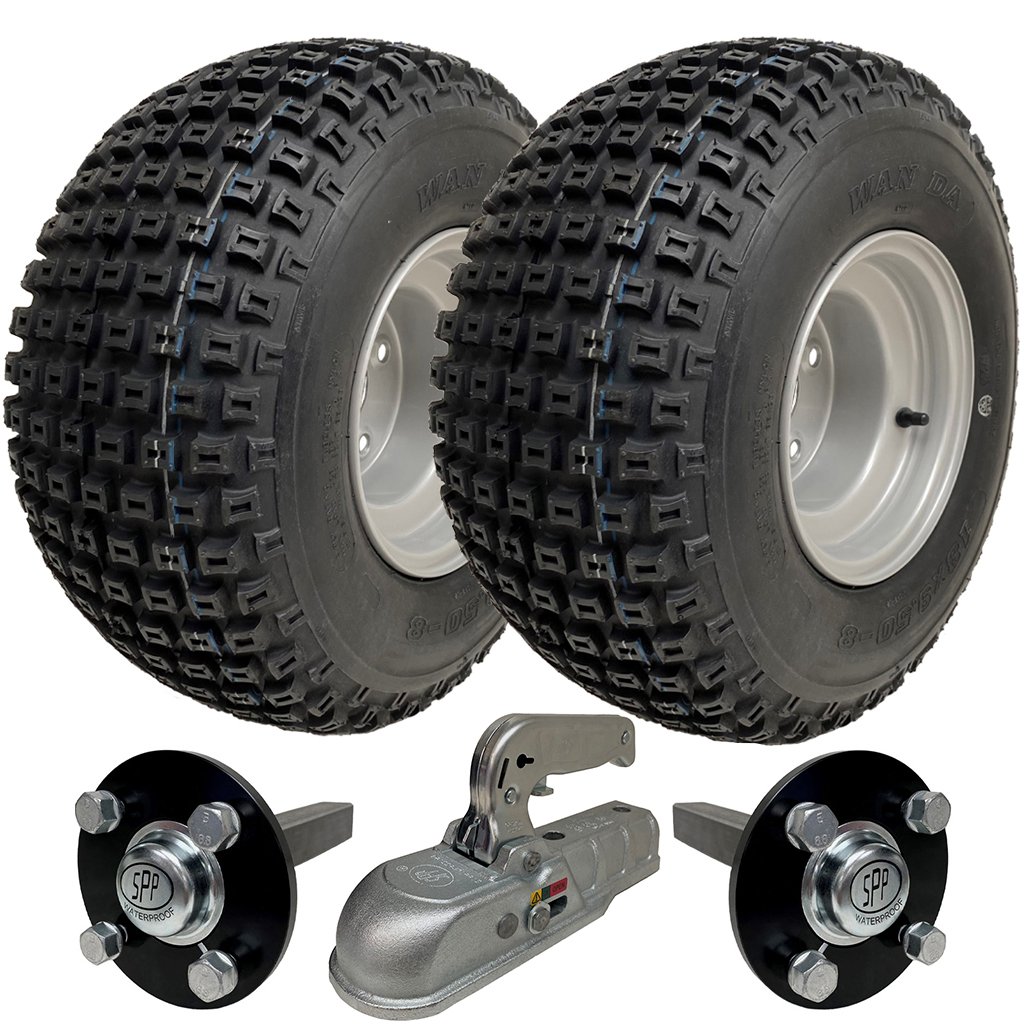

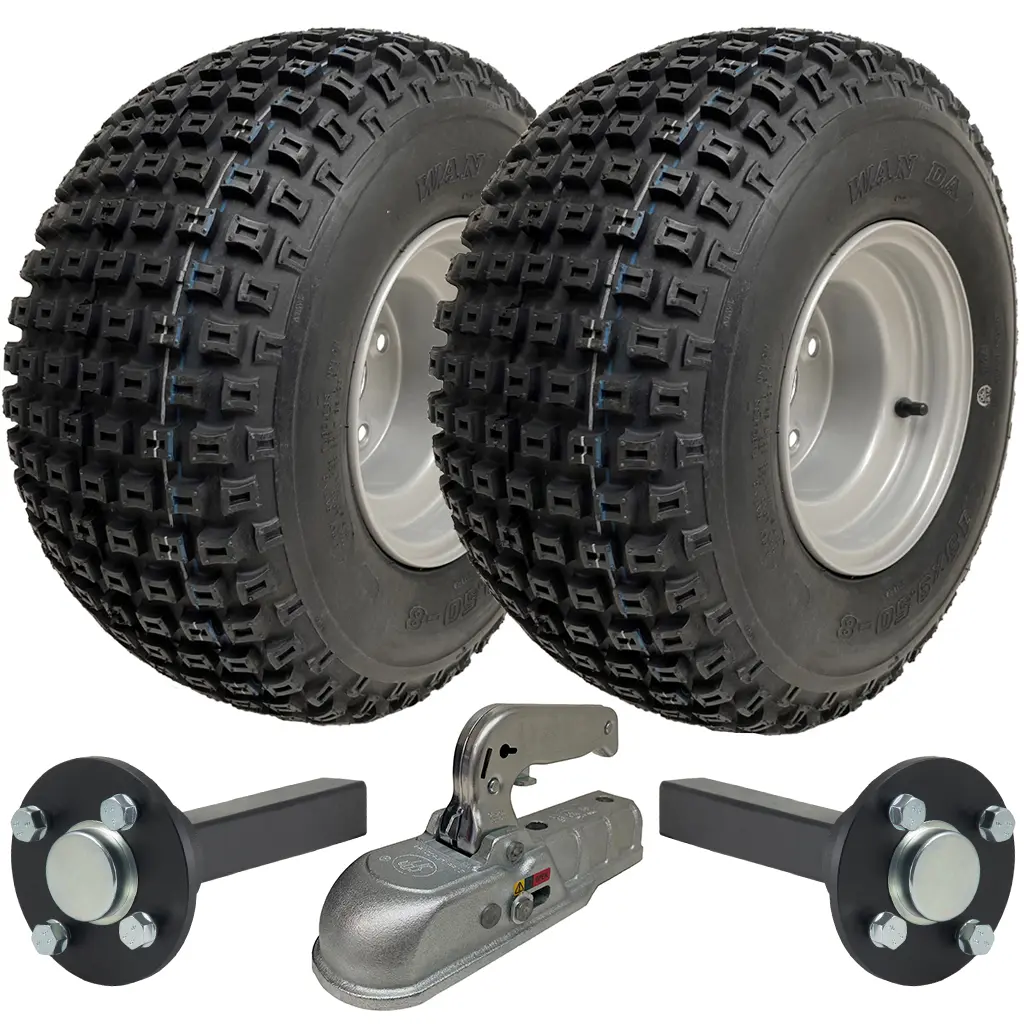

Contents of this kit include:
2 x Wheels,
2 x Hub & Stub axles,
1 x Cast steel tow hitch.
Item specifications: Wheels.
• 18x9.50-8 4ply Wanda P322 knobby tyres on steel rim 4x100mm PCD.
• Overall diameter: 460mm,
• Max width of tyre: 212mm,
• Tread depth: 9.5mm,
• Inflation: 5psi,
• Max load per wheel: 102kg,
• Wheel rims are heavy duty welded rims, powder coat paint with E-coating anti-corrosion treatment for superior finish.
Item specifications: Stub axles.
• Hubs are forged steel, black paint finish, fitted with 4x 12mm wheel bolts.
• PCD is 100mm,
• Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long.
• The hubs are waterproof.
• The shaft is 35x35mm x 200mm long, solid steel.
• Manufactured by SPP (Steelpress, Poland).
Item specifications: Hitch.
SPP SteelPress Production European manufactured.
High quality trailer coupling, Cast iron body with pressed steel handle.
3000kgs load capacity.
Double movement opening.
To fit on round or square bar.
These kits can be used for making trailers for off-road use.
Maximum kit load capacity 204kgs
Add to cart
Sign in
Pay
Get Delivered
Part Number | KIT1022 |
Rim Colour | Silver |
Tyre Size | 18x9.50-8 |
Ply | 4 |
TT/TL | TL |
Pattern | P322 |
Tread Depth (mm) | 9.5 |
Rim Width (in) | 7.0 |
SW (mm) | 212 |
OD (mm) | 460 |
PSI | 5 |
Stud / PCD | 4x100mm |
E-Mark | No |
Hub & Stub Axle (2pcs) | Hub & Stub axle 4/100 M12 wheel bolt 35x35mm Hi speed |
Hitch (1pcs) | SPP 3000kg Cast Hitch |
